PV Frame (AA6063)

Features：

  • Material Grade: AA6063 T5 (AA6060, AA6061, AA6082 available upon request)
  • Dimensions: 40×40 mm / 35×35 mm
  • Frame Length: 6 meters or customized based on your drawing
  • Surface Treatment: Mill Finish
  • Color: Aluminum Natural
  • Delivery Format: In un-cut profiles / As pre-assembled units
  • Services: Extrusion, Cutting, Punching, Drilling, Welding, Assembly, CNC Machining
  • Application: Solar Module (PV Module) Assembly
Send an Inquiry

Production Facilities

10 Extrusion Lines：

Featuring fully automated production with rapid mold-changing capabilities. This ensures a perfect fit between products and molds, significantly optimizing production efficiency.
Ten automatic extrusion production lines:
● Quicker mould replacement & better efficiency
● High-precision moulds.

3 Sandblasting Lines：

Designed to enhance product aesthetics. We offer customized sandblasting effects tailored to specific client requirements.
Three sandblasting lines:
● Make the surface frosted and obtain better appearance of the product.
● Can be customized according to different requirements.

2 Anodizing Lines：

Enhanced corrosion and oxidation resistance. We utilize natural gas curing oven drying to ensure the integrity and consistency of the film coating color. Available in silver (natural), black, and other custom colors as per client request.
Two anodizing production lines:
● Enhance the corrosion resistance of aluminium profiles
● Dry the products with curing oven to protect the color of the film
● Paint the aluminum products in different colors according to customers’ requirements.

1 Protective Film Application Line：

High-quality metal protective films are applied to the product surface to prevent scratches and dust contamination. During this process, we strictly inspect film thickness, hardness, and width. Any non-conforming products are immediately rejected and scrapped to ensure zero-defect quality.
One film packing line:
● Give the product perfect protection with high quality protective film for metal
● Check the film thickness, hardness and width of the products
● All the defective products will be rejected directly.

5 Fully Automated Frame Production Lines：

Dedicated to precision cutting and punching of frames based on client specifications. All products undergo a final rigorous inspection before professional packaging.
Five fully automatic border production lines:
● According to customer requirements, cut and punch the frame
● After inspection, proceed with packaging.

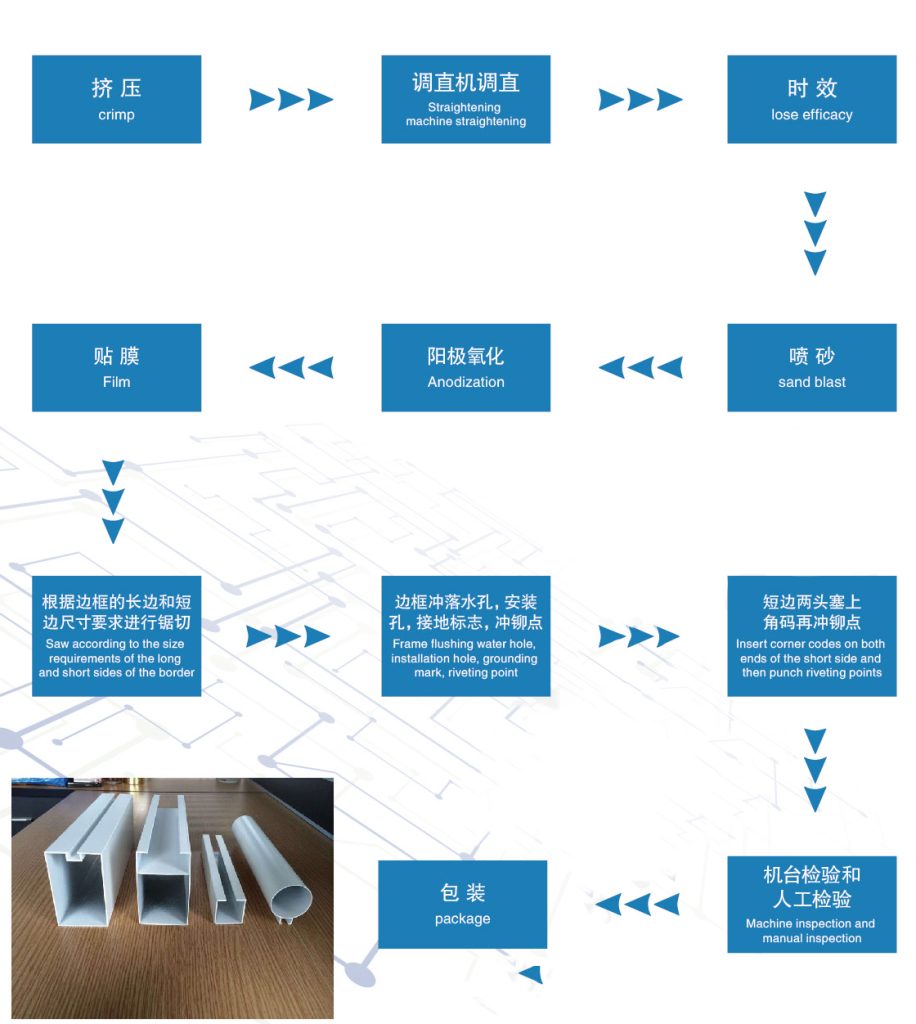

Production Process Flowchart

solar aluminum frame list a1

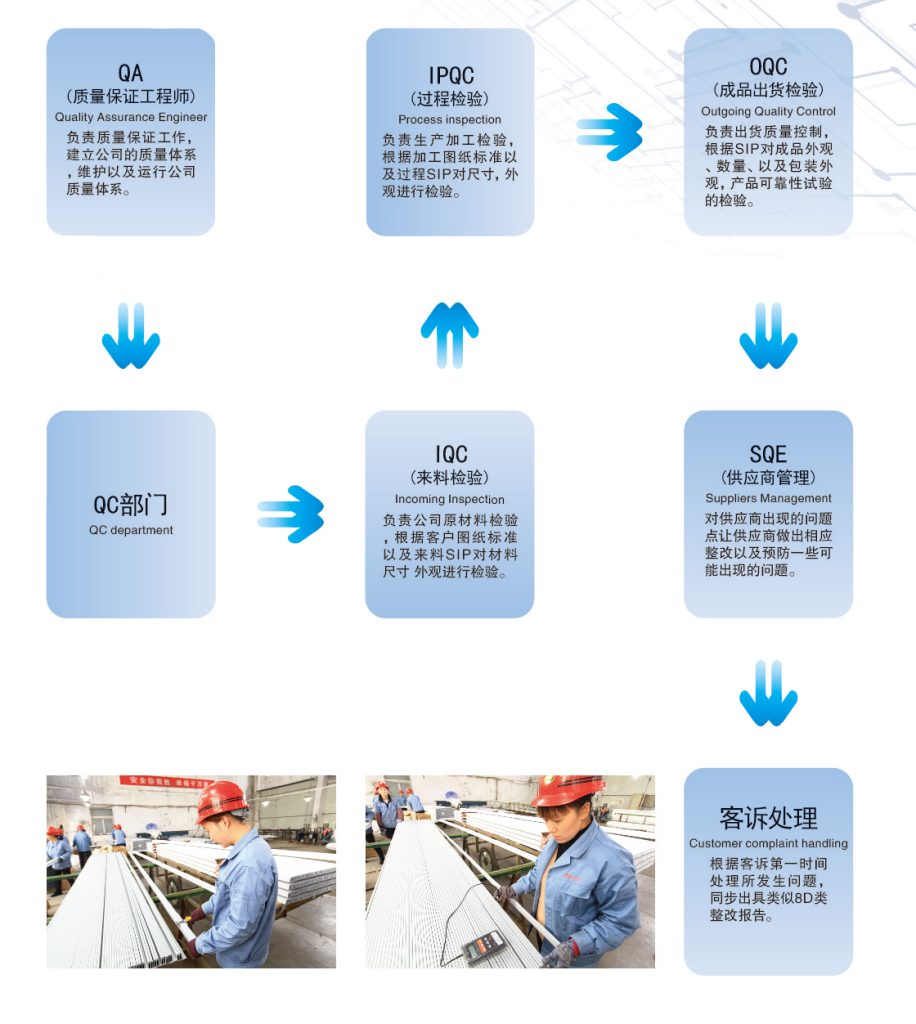

Quality Control (QC) Process

solar aluminum frame list a2

Technical Datasheet

Swipe right to view more data

Product Details
Item Aluminum Solar Frame
Series 6000 Series Aluminum Alloy (e.g., 6063, 6005, 6061)
Temper T4, T5, T6
Length 3-6 meters, or customized based on client requirements
Shape Round, Square, Flat, Hollow, Oval, Triangle, U-profile, L-profile, T-profile, Custom Shapes Available
Thickness General profile thickness: 0.7 – 5.0mm
Processing CNC Machining, Drilling, Milling, Cutting, Bending, Tapping, Welding, Assembly, Punching
Cross-section Dimensions 30mm*35mm, 35mm*35mm, 35mm*40mm, 30mm*46mm, 35mm*45mm, 35mm*50mm, etc.

Solar Frame Types

(1) 90°-Angle : fix with screws
(2) 45° -Angle : fix with Corner

Anodizing

Swipe right to view more data

Anodizing Quality
Grade Corrosion Resistance Abrasive Resistance
CASS Test Alkaline Sandtrial Abrasion
Hours Scroll right for more info Grade Scroll right for more info Dropping Scroll right for more info coefficientf,g/um Scroll right for more info
AA10 16 >=9 >=50 >=300
AA15 32 >=9 >=75 >=300
AA20 56 >=9 >=100 >=300
AA25 72 >=9 >=125 >=300

Related products

frame solar aa6063

PV Frame (AA6063)

Read More
frame pv aa6063

Solar Frame (AA6063)

Read More
