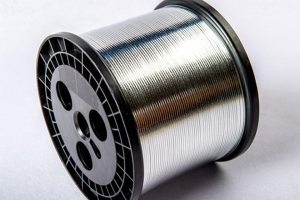

Interconnect Wire

Features：

Ideal for automated soldering processes, our Interconnect Ribbon connects solar cells along the main busbars to efficiently collect and transfer electrical current.

Send an Inquiry

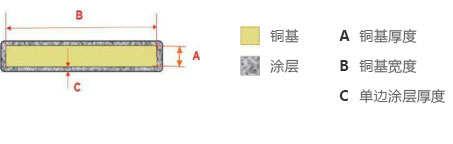

Structural Details

Technical Specifications

Scroll right for more information

Application	Width (mm)	Base Copper Thickness (mm)	Coating Thickness (Single Side)	Coating Alloy
12BB	0.4	0.36	20μm ± 5μm	SnPbAg: 62/36/2 SnPb: 60/40 SnPb: 63/37
12BB	0.36	0.32
5BB	0.9	0.15 0.18 0.2 0.22
5BB	1
4BB	1.1
	1.2
	1.3
3BB	1.5
	1.6
	1.7
	1.8

*Note: Custom specifications are available upon request. Copper base hardness, thickness, and coating thickness can be adjusted according to your project requirements.
